Platinum Smart-Heat™ Electric Marine
Constructed from high-quality AISI316 Marine-Grade Stainless Steel, Bromic Heating's Platinum Electric Marine heater series ensures exceptional durability in coastal and marine environments.
To counteract the hurdles of installing an outdoor heater near the coast where standard stainless steel can rust and deteriorate, Bromic engineered the Platinum Electric Marine heater series.
Built to withstand corrosive environments with high grade materials, a fully enclosed heater body to protect internal elements, and an easy to maintain, ceramic-glass surface, this exceptional heater is backed by an industry-leading 5-year warranty offering peace of mind that this heater is built to last. (5 year warranty is for land based applications only does not cover installations on marine vessels).
Available in a white or black finish with a variety of mounting options including wall, ceiling, and recessed, the Platinum Electric Marine heater is the ideal solution to enrich the comfort experience of owners of coastal residences and superyachts as well as guests on cruise ships.
Free Consultation
Specification
Reference the specification guide below to help you select the correct solution for your needs.
| MODEL | 2300W MARINE SERIES | 2300W MARINE SERIES | 3400W MARINE SERIES | 3400W MARINE SERIES | 4500W MARINE SERIES | 4500W MARINE SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| WEIGHT | 17lbs | 17lbs | 22lbs | 22lbs | 33lbs | 33lbs |
| MODEL # | BH0320015 | BH032001 | BH0320016 | BH0320018 | BH3622002 | BH3622003 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-220V/9.6A 208V/11.1A** |
220-220V/9.6A 208V/11.1A** |
220-240V/14.2A 208V/16.3A** |
220-240V/14.2A 208V/16.3A** |
220-240V/18.8A 208V/21.6A** |
220-240V/18.8A 208V/21.6A** |
| MINIMUM FLOOR CLEARANCE | Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
| WARRANTY | 5 Year Parts (5 year warranty is for land based applications only does not cover installations on marine vessels) | |||||
| CONTROL OPTIONS | 2300W MARINE SERIES | 3400W MARINE SERIES | 4500W MARINE SERIES | |||
| AFFINITY ON/OFF | ✓ | ✓ | ✓ | |||
| AFFINITY DIMMER | ✓ | ✓ | ✓ | |||
| MANUAL WALL SWITCH | ✓ | ✓ | ✓ | |||
*Available in varying voltages: 220/240v and 208V.
**208V version recommended for land-based commercial applications only and not Lloyd’s Register Certified.
Accessories
Bromic’s control and accessory options make the operation of your outdoor heater even more versatile. Choose from wall and ceiling mounting accessories or recessing kits to on/off remotes or dimmer controls for a completely personalized user experience.
Affinity Smart-Heat™ On/Off Controllers
The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.
Affinity Smart-Heat™ Dimmer Controllers
TEnjoy custom comfort with the Affinity Dimmer Series. Suitable for Bromic Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Series comes in 1 and 2 channel input options – with each channel controlling up to 6000W of power. Using the Bromic Heating app, instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration
Platinum Electric Recess Kit
Seamlessly integrate your Bromic Platinum Smart-Heat™ Electric units with the Standard Recess Kit. This kit is ideal for new build projects that allow for more cavity clearance space with a sleek, simple design.
The needed parts and hardware are included for recessed mounting of our Platinum and Platinum Marine series, allowing you to easily install the heater so that it doesn’t interfere with your streamlined aesthetic.
Features
Constructed of premium 316 marine-grade stainless-steel, complete with a sleek ceramic glass screen and a fully enclosed body, the Platinum Marine heater provides even heat distribution to coastal and marine environments.
Adjustable Mounting Brackets
For efficient, directional heat distribution.
Compact & Elegant Design
Seamless integration into design-focused spaces with minimized light emissions and an easy-to-clean premium black or white finish.
Tinted Glass-Ceramic Fascia
Spread heat evenly across any area while minimizing light emission.
Slim-line Design
Minimal ceiling recess clearance required. Flush-mounted design aesthetics.
Set and forget
Simple and easy to use, with single-switch activation and smart system compatibility.
Sealed Element
Sealed compartment with thin film elements to prevent corrosion.

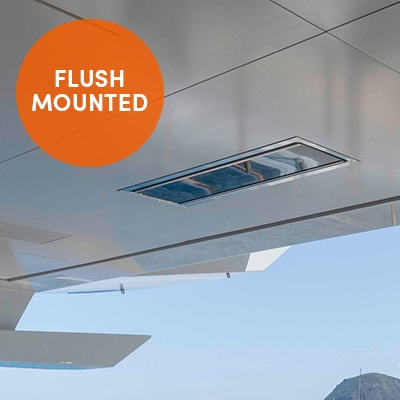

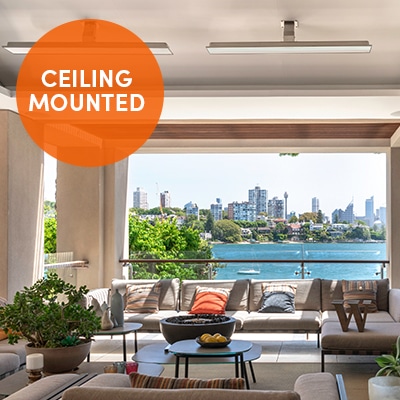

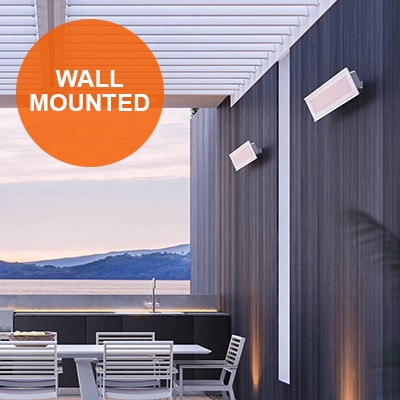

Mounting Options
